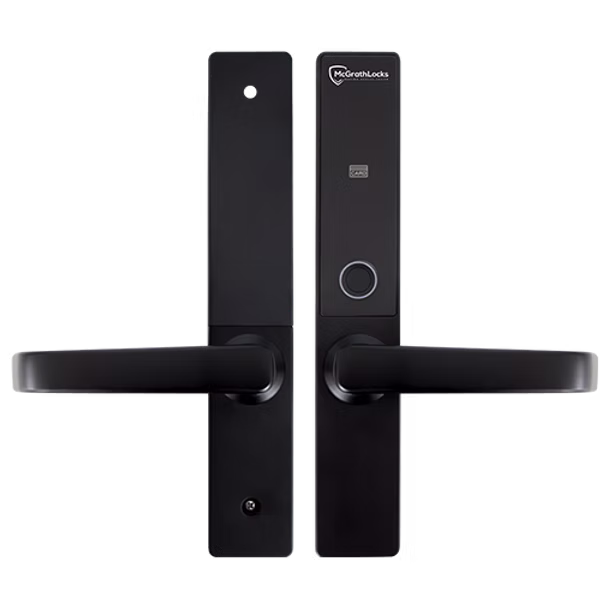

Versatile & Robust Digital Smart Lock for Residential & Commercial Use SKU: HAMILTON – Black

Description

The HAMILTON by McGrath Locks is one of the most versatile digital smart locks available in Australia. It is a 5-in-1 digital smart lock offering keyless entry through PIN codes, RFID access cards or tags, fingerprint recognition, Bluetooth-enabled eKeys, or a mechanical key override. Supplied with an adjustable tubular latch, it is also compatible with most common Australian commercial mortice locks. The lock is fire-rated for up to 2 hours plus, its DDA-compliant lever makes entry effortless for everyone. Easily managed via the TTLock App, you can control access remotely with the optional Wi-Fi gateway. Perfect for both residential and commercial properties, it combines security and convenience.

features:

Lock Functions

• Manage lock functions via TTLock App using Bluetooth or Wi-Fi (with optional gateway).
• Enrol PIN Codes, RFID access cards & tags, Fingerprints, and send eKeys to your family and visitors.
• Passage Mode can be used to leave your door open when required.
• Anti-peep code function stops unauthorised people from seeing the correct code inputted.
• Incorrect attempt lockout after 5 wrong attempts for added security.
• Reset button can be disabled in the App for additional security.
• Audit trail within the App to see who accessed your door and when.
• Mechanical key override option for emergency access.

Battery & Power

• Powered by 4 x AA Alkaline batteries (not included).
• Low battery alert (visible in App and audible at the lock).
• USB-C port for emergency power access.

Built to Last

• Glass screen for extra durability.
• IP66 rating on external lock housing, ensuring excellent weather protection.

Installation

• Field changeable handing for flexible installation.
• Retrofittable with DDA compliant levers to comply with BCA AS1428.1 -2009 (Levers sold separately).
• Compatible with most common Australian mortice locks.
• Suits doors with thickness from 35–54mm.
• 2-hour fire rating for E-Core and Firecore doors.
• Supplied with the ATL6070 McGrath Locks 2-hour fire-rated tubular latch.

Finish & Lock Dimensions

• Available in black or satin nickel.
• Lock case dimensions: 180mm (H) x 72mm (W) x 25mm (D).

what’s in the box:

• Exterior Lock Assembly
• Interior Lock Assembly
• Installation Guide
• Tubular Latch with Strike Plate
• Drill Positioning Template
• 2 Backup Mechanical Keys
• 2 Access Tags
• Mounting Screws
• Mini Security Screwdriver
