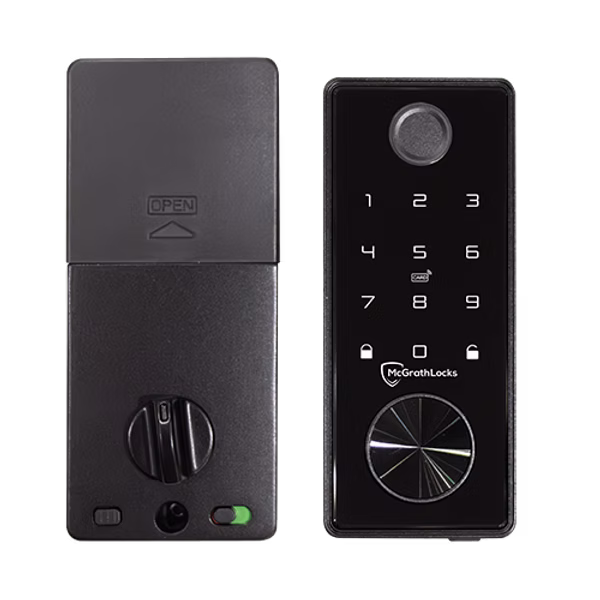

McGraths digital lock – Stylish Deadbolt for Residential Doors SKU: X3 – Black

The X3 by McGrath Locks is a sleek 5-in-1 digital deadbolt, perfect for homes, offices, or businesses. Managed via the TTLock App, it allows access through PIN codes, RFID access cards or tags, fingerprint recognition, and Bluetooth-enabled eKeys—with a mechanical key override for backup entry. With an optional Wi-Fi gateway, you can unlock it remotely from anywhere. The adjustable 60/70 mm deadbolt is ideal for retrofitting, and it suits door thicknesses from 35-50 mm.   Features Lock Functions

• • • Manage lock functions via TTLock App using Bluetooth or Wi-Fi (with optional gateway).
    • Enrol PIN Codes, RFID access cards & tags, Fingerprints, and send eKeys to your family and visitors.
    • Passage Mode can be used to leave your door open when required.
    • Anti-peep code function stops unauthorised people from seeing the correct code inputted.
    • Incorrect attempt lockout after 5 wrong attempts for added security.
    • Reset button can be disabled in the App for additional security.
    • Audit trail within the App to see who accessed your door and when.
    • Mechanical key override option for emergency access.

Battery & Power

• • • Low battery alert (within App and audible at the lock).
    • 4 x AA Alkaline Batteries (not included).
    • USB-C port for emergency power access.
    • USB-C port for emergency power access.

Built to Last

• • • Made from durable materials for long-lasting use.
    • IP65 rated for excellent weather resistance, suitable for outdoor use.
    • Temperature resistant from -20°C to 60°C for all-weather reliability.
    • Humidity tolerance from 10% to 98% for reliable operation in varying conditions.

Installation

• • • Field changeable left and right door handing.
    • Suits doors thickness 35-50mm.

Finish & Lock Dimensions

• • Outside lock case dimensions: 140 (H) x 60 (W) x 16mm (D).
  • Inside lock case dimensions: 155 (H) x 68 (W) x 28mm (D).
  • Finished in black or silver.

  Whats in the box :

• Exterior Lock Assembly
• Interior Lock Assembly
• Door position sensor
• Installation Guide
• Drill Positioning Template
• 2 Backup Mechanical Keys
• 2 Access Tags
• Mounting Screws
