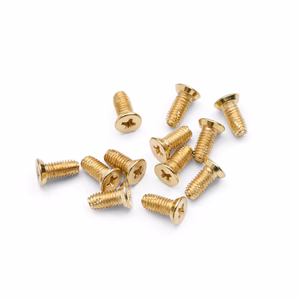

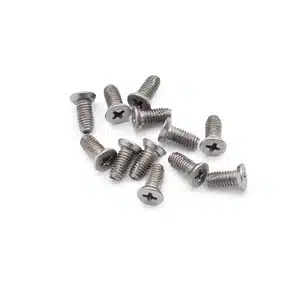

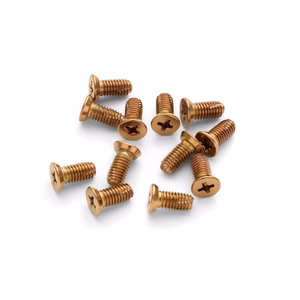

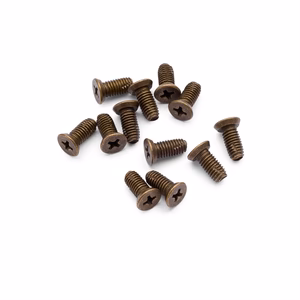

Manovella Metal Thread Hinge Screw M5 (12 pack) – Various Finishes

Designed to suit our range of hinges, these metal thread screws are exclusive to Manovella. Perfect for metal doors & frames, these M5 machine screws are crafted from 304 grade stainless steel & electroplated to match the finish on our entire range of hinges including our Fixed Pin 100 x 75mm, Fast Fix (Hirline) hinges, and even our lift off range. These screws sport an undercut head to ensure a neat fit that does not protrude the surface. A precise M5 thread for pre-tapped holes, as well as incisions at the tip of the screw creating a self-tapping feature for fresh applications.

Download Product Specification Sheet

  Features:

• Sold in Packs of 12 screws
• Made from 304 Grade Stainless Steel
• M5 Thread
• Pitch 0.8
• 12mm in overall length
• Undercut 8mm screw head providing additional clamping force
• Self tapping

  Due to the plating process required for smaller parts, there may be slight variances in the finish when compared to our range of door hardware.
